KNT-SE SERIES
Product family: KNT-SE

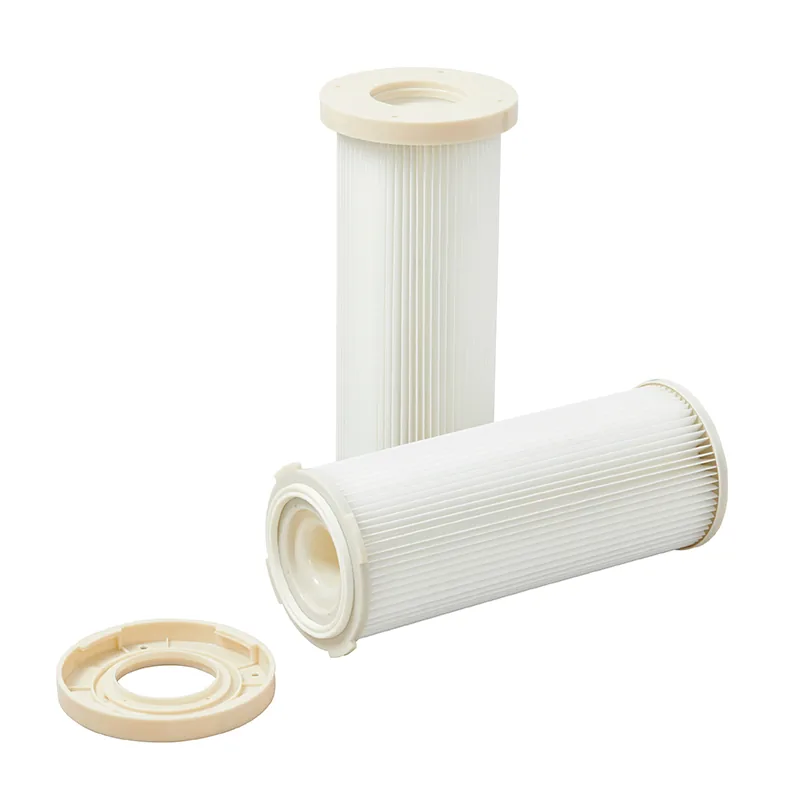

Plastic end-cap dust filter cartridge
A pleated replacement cartridge with molded end caps, designed for practical dust-collection matching and repeat supply.
- High filtration efficiency with stable pleat spacing
- Low pressure drop and long service life
- Multiple end-cap, seal and media options
Custom dimensions, PTFE membrane, anti-static and flame-retardant media are available upon request.
Model selection
KNT-SE technical parameter table
Use this table as a specification reference. Final construction is confirmed against your application, sample or drawing.
| KNT model | Size (mm) | Area (m2) | Recommended airflow rate | Support bands (pcs) | |||
|---|---|---|---|---|---|---|---|
| Diameter | Bore size | Length | 0.8 m/min (m3/h) | 1.5 m/min (m3/h) | |||
| 2066 | 200 | 70 | 660 | 3.5 | 166 | 315 | - |
| 2080 | 200 | 70 | 800 | 4.2 | 202 | 378 | 1 |
| 20100 | 200 | 70 | 1000 | 5.3 | 252 | 477 | 2 |
| 25060 | 250 | 100 | 660 | 5.0 | 241 | 450 | - |
| 2580 | 250 | 100 | 800 | 6.1 | 292 | 549 | 1 |
| 25100 | 250 | 100 | 1000 | 7.6 | 364 | 684 | 2 |
Construction details
Built for dependable replacement fitting.
Each construction element is selected around sealing, air distribution and practical installation in the dust collector.

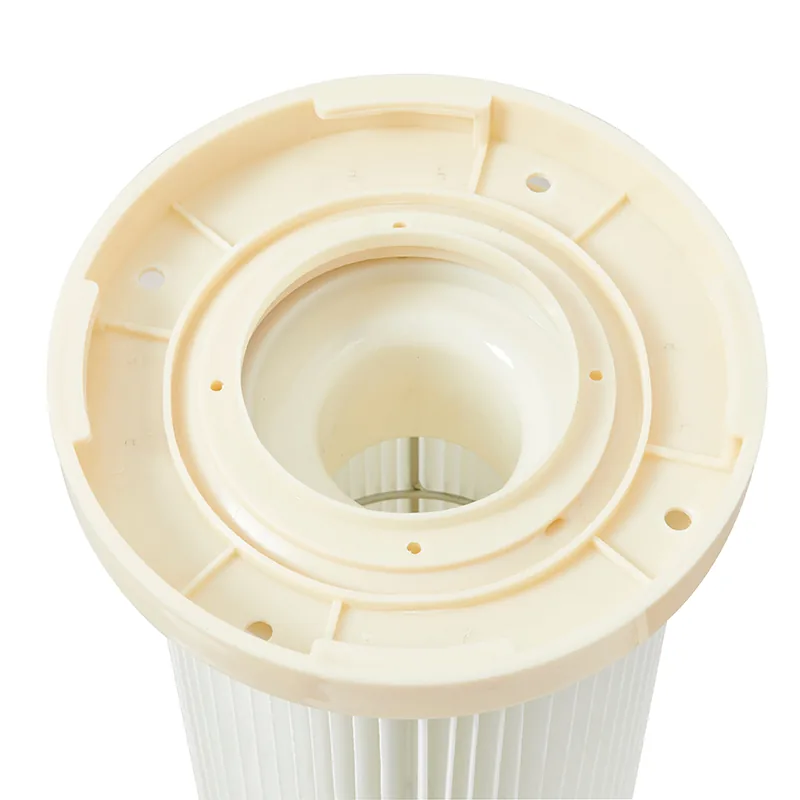

- ABS molded end capsFour-ear integrated Venturi design supports dust-release performance and service life.
- Stainless-steel support bandsHelp maintain locking performance and uniform pleat spacing.
- Square-hole inner coreSupports a high open area for smooth filtration and lower resistance.
- EVA sealing ringProvides an air-tight fit for reliable equipment matching.
White-background details
See the construction before matching.

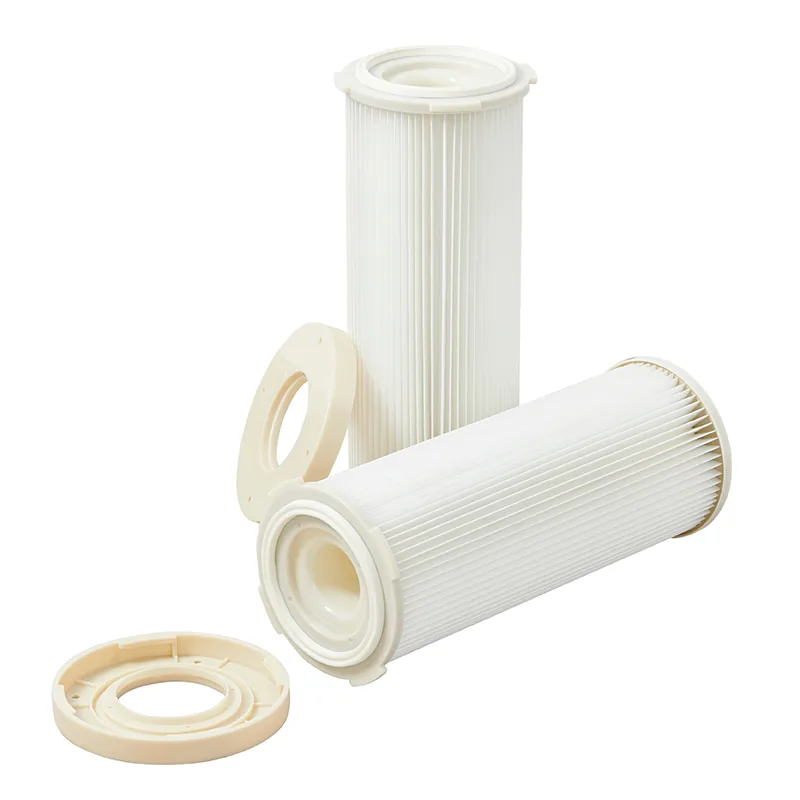

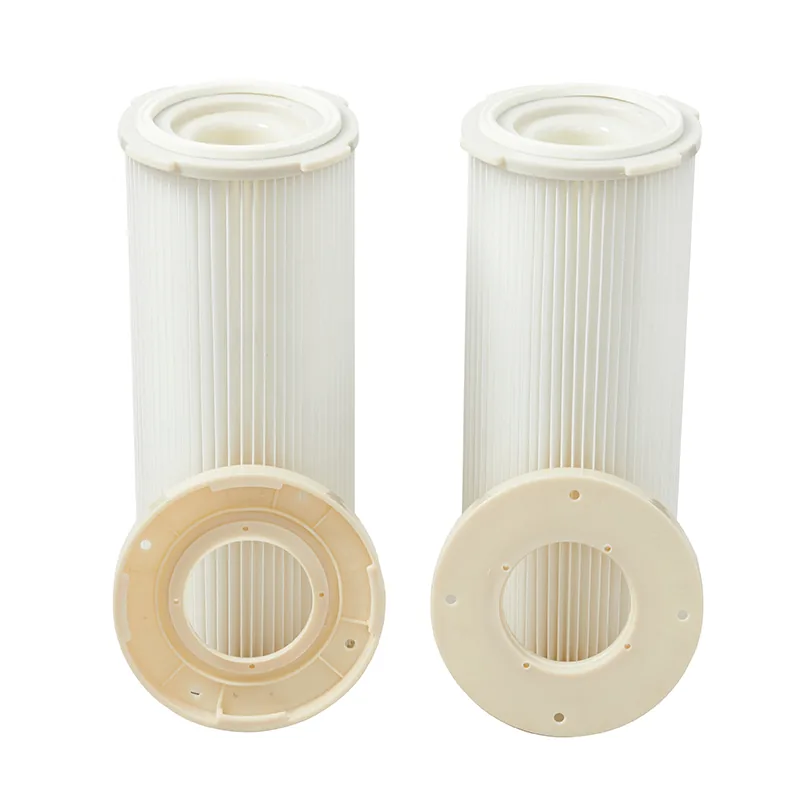

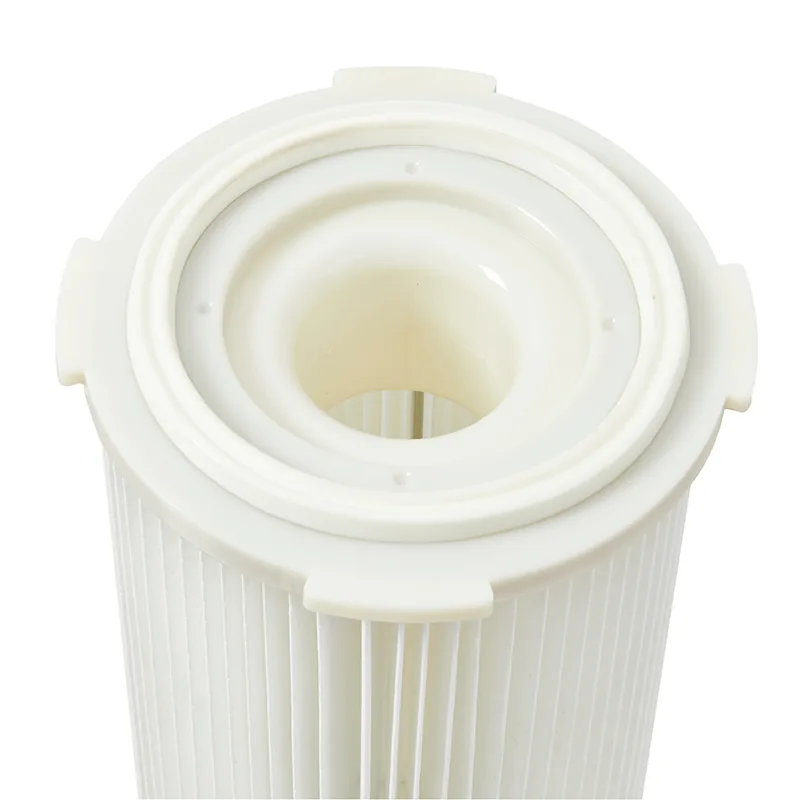

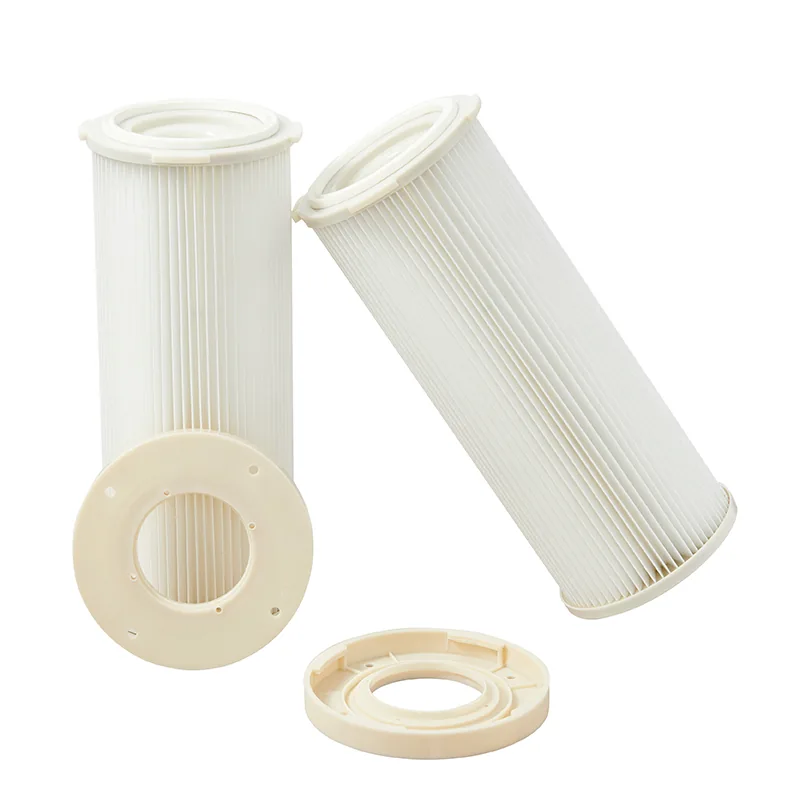

Product photos show the pleated media, molded end caps, locking features and interface details.
View full image ↗
View full image ↗
View full image ↗
View full image ↗
View full image ↗Need an exact replacement?
Send one clear photo, your dimensions or a drawing.
We will confirm the suitable media, end cap, sealing method and repeat-order specification with you.
